液位量測 / 雷達波
導波桿式雷達波

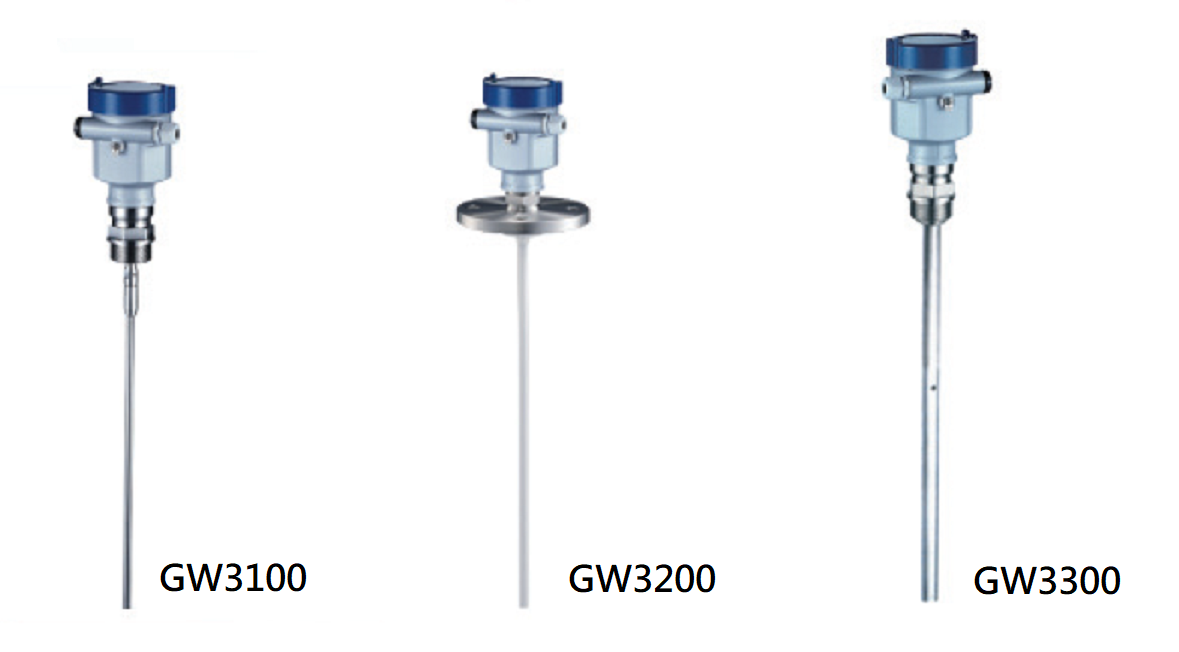

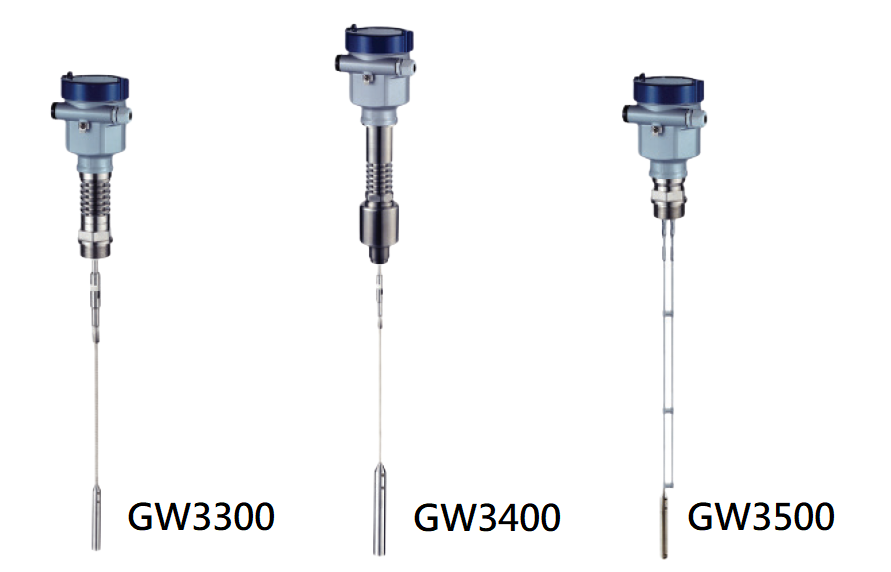

| Type | GW3100 液體及固體測量，複雜過程條件 | GW3200 強腐蝕性液體介質 | GW3300 液體測量小介電常數，複雜過程條件 | GW3300 液體測量高溫高壓環境，複雜過程條件 | GW3400 液體測量高溫高壓環境，複雜過程條件 | GW3500 小介電常數液體及固體測量，複雜過程條件 |
| Range | ROPE: 30M纜式 / ROD:6M棒式 | ROD: 6M棒式 | ROD: 6M棒式 | ROPE: 30M纜式 / ROD:6M棒式 | ROPE: 30M纜式 / ROD:6M棒式 | ROPE: 30M纜式 / ROD:6M棒式 |
| Accuracy | ±10mm | ±10mm | ±10mm | ±10mm | ±10mm | ±10mm |
| Output | 4-20mA / HART,2WIRE / 4WIRE | 4-20mA / HART,2WIRE / 4WIRE | 4-20mA / HART,2WIRE / 4WIRE | 4-20mA / HART,2WIRE / 4WIRE | 4-20mA / HART,2WIRE / 4WIRE | 4-20mA / HART,2WIRE / 4WIRE |
| Rating | Stainless steel 316L/IP67 | Stainless steel 316L/IP67 | Stainless steel 316L/IP67 | Stainless steel 316L/IP67 | Stainless steel 316L/IP67 | Stainless steel 316L/IP67 |
| Power | 22.8~26.4VDC, 198~242VAC | 22.8~26.4VDC, 198~242VAC | 22.8~26.4VDC, 198~242VAC | 22.8~26.4VDC, 198~242VAC | 22.8~26.4VDC, 198~242VAC | 22.8~26.4VDC, 198~242VAC |
| Display | LCD顯示液位,空間,百分比,容積,回波曲線圖,歷史曲線圖,信號強度...等等 | LCD顯示液位,空間,百分比,容積,回波曲線圖,歷史曲線圖,信號強度...等等 | LCD顯示液位,空間,百分比,容積,回波曲線圖,歷史曲線圖,信號強度...等等 | LCD顯示液位,空間,百分比,容積,回波曲線圖,歷史曲線圖,信號強度...等等 | LCD顯示液位,空間,百分比,容積,回波曲線圖,歷史曲線圖,信號強度...等等 | LCD顯示液位,空間,百分比,容積,回波曲線圖,歷史曲線圖,信號強度...等等 |
